What Is Direct Current Dimming and How Does It Work in LED Lighting

Direct current dimming lets you control the brightness of LED lights by changing the amount of electric current. You can make your room brighter or dimmer without flickering or harsh changes. This method helps you create comfortable lighting for reading, relaxing, or working. When you understand direct current dimming, you can choose the best LED lights for your needs.

Key Takeaways

• Direct current dimming lets you change LED brightness easily by changing the electric current.

• The right LED driver keeps the light steady and stops flickering, which makes you feel more comfortable.

• Lowering your LED lights can use less energy, so your electricity bill goes down and it helps the environment.

• Your dimmer switch, LED lights, and driver must work together for the best results.

• Dimmable LED lights help you set the right mood for different things, like reading or having friends over.

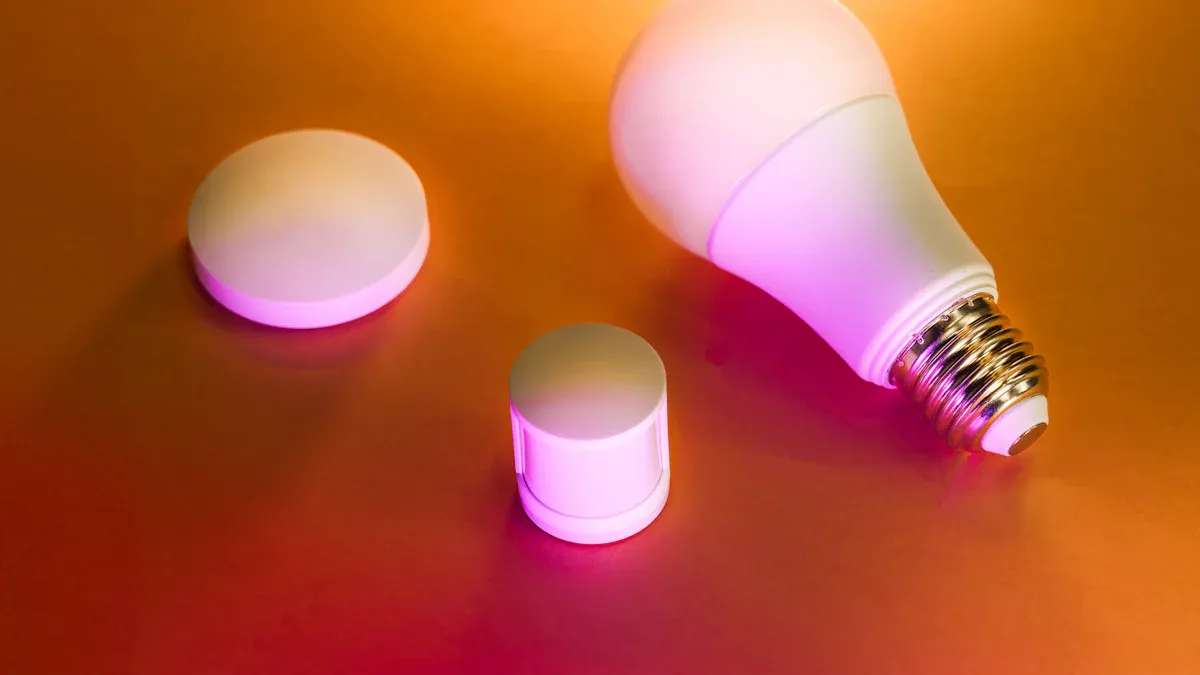

What Is Direct Current Dimming

Basic Concept

You use direct current dimming to control how bright your LED lights shine. This method changes the amount of electric current that flows through the LED. When you increase the current, the light gets brighter. When you decrease the current, the light becomes dimmer. You do not change the color of the light, only its brightness.

LEDs need direct current to work. Most homes and buildings use alternating current (AC) from the power grid. An LED driver changes AC into direct current (DC) so your LEDs can use it. The driver also listens to your dimming signal and adjusts the current. This process lets you dim your lights smoothly and safely.

Recent technology has made direct current dimming even better. New drivers use smart electronics and sensors. These improvements help you save energy and make your lighting system more flexible. You can now connect your lights to smart home systems and control them with your phone or voice.

Manufacturers work hard to make sure your LED lights stay reliable. They use advanced machines to build and test each product. They run tests that copy real-life conditions, like heat and long hours of use. High-quality parts, such as strong capacitors and semiconductors, help prevent flickering or sudden dimming.

Tip: When you choose LED lights with direct current dimming, you get a system that is built for smooth control and long life.

Role in LED Brightness

Direct current dimming gives you precise control over how bright your LEDs shine. You can set the perfect light level for reading, relaxing, or working. This method does not change the color of your light, so your room always looks natural.

Here are some reasons why direct current dimming is important for LED lighting:

• You get exact control over brightness.

• The color quality of your light stays the same.

• You save energy and your bulbs last longer.

• You can design lighting for many different spaces and needs.

The LED driver plays a big role in this process. It keeps the current steady, even when you change the dimming level. The driver uses feedback loops to watch the current and adjust the voltage. This keeps your lights bright and stable, without flicker.

Today, you can find direct current dimming in many smart lighting products. Companies keep making new drivers and control systems. These advances help you enjoy better lighting and more ways to control your space.

How Direct Current Dimming Works

Adjusting DC Current

You can control the brightness of your LED lights by adjusting the direct current that flows through them. This process is the foundation of led dimming. When you increase the current, your LED shines brighter. When you decrease the current, the light becomes dimmer. You do not change the color, only the brightness.

You can use a simple circuit to adjust the current for dimming leds. Here is one way to set up the circuit:

• Connect the positive terminal of your power source to one outer pin of a potentiometer.

• Connect the center pin of the potentiometer to the anode of the LED.

• Connect the cathode of the LED to the negative terminal of the power source.

• Turn the potentiometer knob to change the brightness.

You can also calculate the right resistance for your circuit. Follow these steps:

1. Identify the supply voltage (V_source).

2. Find the LED forward voltage (V_LED).

3. Decide how much current you want for the LED (I_LED).

4. Use the formula: R = (V_source - V_LED) / I_LED.

This method gives you hands-on control over led dimming. You can see the effect right away as you turn the knob or change the resistance.

Tip: Always use the correct current for your LED. Too much current can damage the light and shorten its life.

PWM in LED Dimming

Pulse-width modulation, or PWM, is another way to achieve smooth dimming. PWM works by turning the LED on and off very quickly. Your eyes cannot see the flicker because the switching happens faster than you can notice. Instead, you see a steady light that changes in brightness.

PWM controls the brightness by changing the duty cycle. The duty cycle is the percentage of time the LED stays on during each cycle. A higher duty cycle means the LED stays on longer, so it looks brighter. A lower duty cycle means the LED stays off more, so it looks dimmer.

PWM is very useful for led dimming because it keeps the color of the light the same at all brightness levels. This method is important for applications like RGB lighting, where you want colors to stay true even when you dim the lights. PWM also helps reduce flicker, which makes your lighting more comfortable for your eyes.

Control Voltage and Output Levels

The design of the LED driver affects how well you can control dimming. The driver changes high-voltage AC power from your wall into low-voltage DC power for your LEDs. It also keeps the current or voltage steady, which protects your lights from sudden changes.

Many drivers support different dimming options. Some let you use a 0-10V control signal, PWM, or a resistor to adjust brightness. For example, the KHM MSPI-DIM100A12S-2500 driver offers several ways to control led dimming. It provides reliable and efficient power, so your lights stay bright and stable. The AccentLight 200W Dimmable LED Driver gives a steady 24V output, which works well for larger lighting setups.

Here are some key points about LED drivers and dimming:

• Drivers convert AC to DC and keep the output stable.

• They protect your LEDs from voltage spikes.

• Many drivers work with external dimmers for flexible led dimming.

When you choose the right driver, you get smooth dimming leds and better energy savings. You also make sure your lighting system lasts longer and works safely.

Note: Always check if your LED driver supports the dimming method you want to use. Compatibility ensures you get the best performance from your lights.

Benefits of Direct Current Dimming

Smooth LED Dimming

You want your lights to change brightness smoothly. Direct current dimming gives you this control. When you adjust the dimming level, your led lights respond right away. You do not see jumps or sudden changes. You get a soft transition from bright to dim.

Several technical factors help you achieve smooth dimming with led lights:

• Incompatible dimmer switches can cause problems. You should use switches made for led lighting.

• Low-quality bulbs or dimmers may not work well. Good electronics make dimming smooth.

• Load mismatch happens when the dimmer is too strong for your led lights. You need the right match for the best results.

Many users say they enjoy easy installation and smooth dimming. David Dobson gave a top rating and said, “Super easy install, I have several of these and they work great!” Mel also liked the ergonomic knob and the clear on/off button.

Reduced Flicker

You want your led lights to stay steady when you dim them. Direct current dimming helps reduce flicker. Flicker can make your eyes tired and cause headaches. With the right dimming method, you get a comfortable light.

Pulse-width modulation (PWM) is a popular way to control dimming. PWM switches the led on and off very quickly. You do not notice the flicker because it happens faster than your eyes can see. PWM changes the duty cycle, which means it adjusts how long the led stays on during each cycle. This keeps the color and brightness steady.

Mike shared his feedback, saying, “Great dimmer switch. Seems to be the best of both worlds, a large paddle and an easy to use rotary dimmer.” You can trust that direct current dimming will give you a flicker-free experience.

Energy Savings

You save energy when you use direct current dimming with led lights. Dimming reduces the power your lights use. You can lower your electricity bill and help the environment.

Here is a table showing how much energy you can save:

Facilities with motion sensors and dimming controls report big savings. The 2024 International Energy Conservation Code now requires sensor controls in computer rooms. You can see energy reductions of 30-50% in lighting. Some places save even more when they use dimming with sensors.

Tip: You get the most energy savings when you combine direct current dimming with smart controls and led technology.

Limitations and Considerations

Compatibility Issues

When you set up dimming for led lights, you might have problems. Not all dimming drivers work with every led system. You must check if your dimmer switch matches your led lights and driver. Using the wrong switch can make your lights flicker or break. Here are some problems you might see:

• If your dimmer switch does not match, your led strips might flicker or get damaged.

• Led technology needs constant current drivers, but old dimmers may not give the right power.

• Bad power supplies and loose wires can make your led lights act strange.

You should always pick a dimming driver that fits your led setup. This helps you avoid trouble and keeps your lighting smooth.

Efficiency Challenges

Dimming led lights can save energy, but you need to set things up right. Dimmable led bulbs use special electronics to control power. If you do not use the right dimming driver, you might waste energy. You need to think about your wiring and make sure all parts work together.

Good heat control and strong drivers help your led lights stay efficient. If you use analog dimming, you lower the current to make the light dimmer. This can cause problems if your driver is not made for it. Pulse width modulation (PWM) turns your led on and off very fast. This keeps the color the same and stops flicker, but you still need a matching dimming driver.

Note: Always check if your dimming driver and led bulbs work together. This keeps your system working well and saves energy.

Comparison to Other Dimming Methods

There are different ways to dim led lights. Direct current dimming changes the current to make the light brighter or dimmer. PWM dimming turns your led on and off quickly, using the duty cycle to control brightness. Analog dimming lowers the current, but it may not work well without the right driver.

Here is a table to help you compare:

You should choose the dimming method and driver that fit your led system and what you need. This helps your lights work their best and last longer.

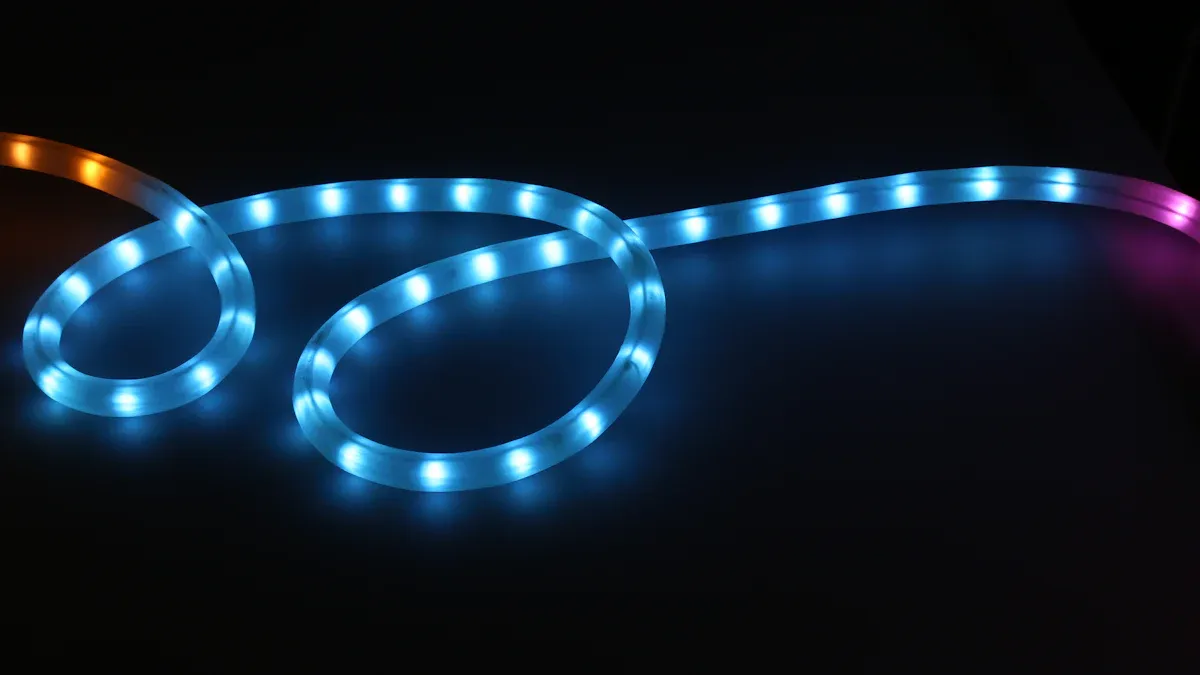

Applications for Dimmable LED Lights

Residential and Commercial Uses

Dimmable led lights are used in lots of places now. At home, you can put them in living rooms, bedrooms, and kitchens. You can pick the right light for reading or watching TV. You can also make dinner time feel special with dimming. Dimming helps you make a room cozy or bright for chores.

In businesses, led lighting with dimming is very common. Restaurants use dimmable lights to make guests feel comfortable. Stores change brightness to show off products and make shopping fun. Offices use led dimming to stop glare and help workers feel good all day.

You also see dimmable led lights in hotels, meeting rooms, and classrooms. These places need lights that can change for different things. With led dimming, you can set the light for meetings, presentations, or quiet study.

Tip: Dimmable led lights work great with smart home systems. You can use your phone or voice to control your lights easily.

Why Choose Dimmable LED Lights

There are many good reasons to pick dimmable led lights with direct current dimming. Here are some reasons architects and designers like them:

• Dimmable led lights make any space look better. You can create nice moods in restaurants, hotels, and stores.

• You can change the light for different things you do. This helps you enjoy reading, relaxing, or working.

• Advanced controls help you save energy. You can cut your power use by up to 50% or more.

• Dimmable led lights fit into smart home systems easily. You get cool features and simple control.

In hotels and other places, there are even more good things:

• You save energy and spend less money, which helps the planet.

• You can set the mood for guests with special lighting.

• Smart controls make it easy to manage lights in big spaces.

Dimmable lighting gives you choices, comfort, and savings. You can use led lighting to fit your needs and style anywhere.

You can make LED lights brighter or dimmer with direct current dimming. You do this by changing the amount of current. This way works well for small lighting setups. If you use high-power LEDs, you need something better like PWM.

• Using a resistor makes the light dimmer by lowering the current.

• Manual controls, like potentiometers, are easy to use but not very efficient.

Remember these things when picking your LED lights. Choosing the right dimming method gives you the best lighting.

FAQ

What does "dimmable" mean for LED lights?

You can adjust the brightness of a dimmable LED light. This feature lets you set the light level for reading, relaxing, or working. Dimmable lights work with a dimming control and a compatible led driver.

How do I know if my LED lights are dimmable?

Check the packaging or product details. You should see "dimmable" listed. If you use a dimming control, make sure your led driver supports dimmable LEDs. Ask your supplier if you are unsure.

Why do I need a special led driver for dimmable LED lights?

A led driver converts power and manages dimming control. You need a driver made for dimmable LEDs. The right led driver helps you avoid flicker and keeps your lights working well.

Can I use any dimming control with my dimmable LED lights?

You must match your dimming control to your led driver and dimmable LEDs. Some dimming controls work with specific drivers. Always check compatibility before you install your system.

What are the benefits of using dimmable LED lights with dimming control?

You get flexible lighting. Dimmable LEDs let you save energy, create moods, and protect your eyes. Dimming control and a good led driver help you enjoy smooth, flicker-free light.

Tip: Always use a dimmable LED with the right led driver and dimming control for the best results.
