What Is Optical Bonding and How Does It Improve Displays

Optical bonding refers to the process of attaching a protective glass or touchscreen directly onto a display panel using a transparent adhesive. This technique aims to eliminate the air gap between layers, which often causes glare and reduces visibility. > Optical bonding enhances visibility in direct sunlight by eliminating the air gap between the LCD panel and the cover glass, which reduces glare and improves readability. Anyone interested in display technology should understand this process because it leads to clearer, more durable screens that perform well in demanding conditions.

Key Takeaways

• Optical bonding improves display visibility by eliminating air gaps, reducing glare, and enhancing readability in bright environments.

• This technology increases durability, making displays more resistant to scratches, moisture, and physical shocks, which is crucial for industrial and outdoor use.

• Optical bonding enhances touch accuracy by stabilizing touch inputs, ensuring precise registration and a better user experience.

• The process involves using specialized adhesives that provide strong bonds and protect against contaminants, ensuring long-term performance.

• Optical bonding is widely used in consumer electronics, medical devices, and automotive displays, meeting high standards for reliability and clarity.

What Is Optical Bonding

Basic Definition

Optical Bonding is a display technology that attaches a protective glass or plastic cover directly to a display screen, such as an LCD or OLED panel, using a specialized transparent adhesive. This adhesive, often made from materials like silicon, epoxy, or urethane, fills the space between the display and the cover glass. The process removes the air gap that usually exists in traditional displays.

This method improves visibility in challenging environments. For example, in high humidity, condensation can form inside displays with air gaps, making them hard to read. Optical Bonding prevents this by sealing the layers together. It also reduces glare from sunlight, which helps users see the screen more clearly outdoors. Many industries use this technology to ensure displays remain readable and reliable in tough conditions.

Note: Optical Bonding not only improves readability but also protects the display from fogging and glare, especially in outdoor or high-humidity environments.

Optical Bonding vs Air Bonding

The main difference between Optical Bonding and air bonding lies in the structure and performance of the display. Air bonding leaves a microscopic gap between the cover glass and the display, while Optical Bonding eliminates this gap. This structural change leads to several performance differences.

Optical Bonding provides better light transmission, which means the display appears brighter and clearer. It also increases durability, making the screen more resistant to scratches and water. However, this process costs more and takes longer to assemble compared to air bonding. Air bonding remains less expensive and quicker to produce, but it does not offer the same level of performance or protection.

Optical Bonding Process

Adhesives and Materials

Manufacturers use several types of adhesives in the Optical Bonding process. These adhesives must be clear, strong, and able to handle different environments. The most common types include:

• Liquid Optically Clear Resins (LOCA): This syrupy liquid hardens under UV light and works well for large screens.

• Optically Clear Adhesive (OCA) Films: These thin, pre-made films act like stickers and cure quickly.

• Silicone-based Adhesives: These adhesives provide flexibility and absorb shocks, making them suitable for displays that face bumps or temperature changes.

• Urethane-based Adhesives: These adhesives offer clarity and durability, which is important for industrial displays.

Acrylic-based adhesives, also called LOCA, bond well to glass and plastic. They keep the display clear and allow light to pass through easily. Recent advancements include dry bonding methods that use solid OCA for a fast and durable bond. Some new adhesives cure in less than a minute and can be as thin as 0.3 mm. These improvements help manufacturers produce displays more efficiently and with better performance.

Note: The choice of adhesive affects the display’s durability, clarity, and ability to resist temperature changes.

Main Steps

The Optical Bonding process involves several careful steps to ensure a high-quality display:

1. Inspect the display and cover glass for dust, scratches, or dead pixels.

2. Apply a sealant around the frame to prevent adhesive from leaking into the panel.

3. Remove any extra sealant to keep the surface clean.

4. Inject the optically clear adhesive between the display and cover glass, making sure no bubbles form.

5. Cure the adhesive, often by baking or using UV light, to create a solid bond.

6. Clean off any leftover glue from the surface.

7. Perform a final quality check to ensure the display works perfectly.

This process fills the air gap between the display and cover glass, creating a single, solid piece. Removing the air gap prevents condensation and fogging, especially in humid conditions. It also reduces internal glare and improves heat distribution. Compared to traditional air gap methods, Optical Bonding increases light transmission and keeps the display bright and clear. The process also makes the screen more resistant to dust, moisture, and physical shocks.

Tip: Optical Bonding costs more than air bonding because it needs special equipment and extra steps, but it offers better performance and protection.

Optical Bonding Benefits

Improved Readability

Optical bonding creates a seamless connection between the display and the protective glass. This process removes the air gap, which allows light to pass through with minimal scattering. As a result, displays achieve higher contrast ratios and maintain clarity even in bright environments. Many optically bonded screens reach brightness levels of 2,500 nits or more, with some models scaling up to 4,500 nits. These high brightness levels ensure that users can read the screen easily under direct sunlight. Studies show that optical bonding can enhance the contrast ratio by up to 400% in sunlight, especially when paired with anti-reflective treatments. The reduction in glare and improved light transmission make these displays ideal for outdoor use.

Tip: Optically bonded displays offer clear visibility in challenging lighting conditions, making them suitable for outdoor kiosks, vehicle dashboards, and industrial equipment.

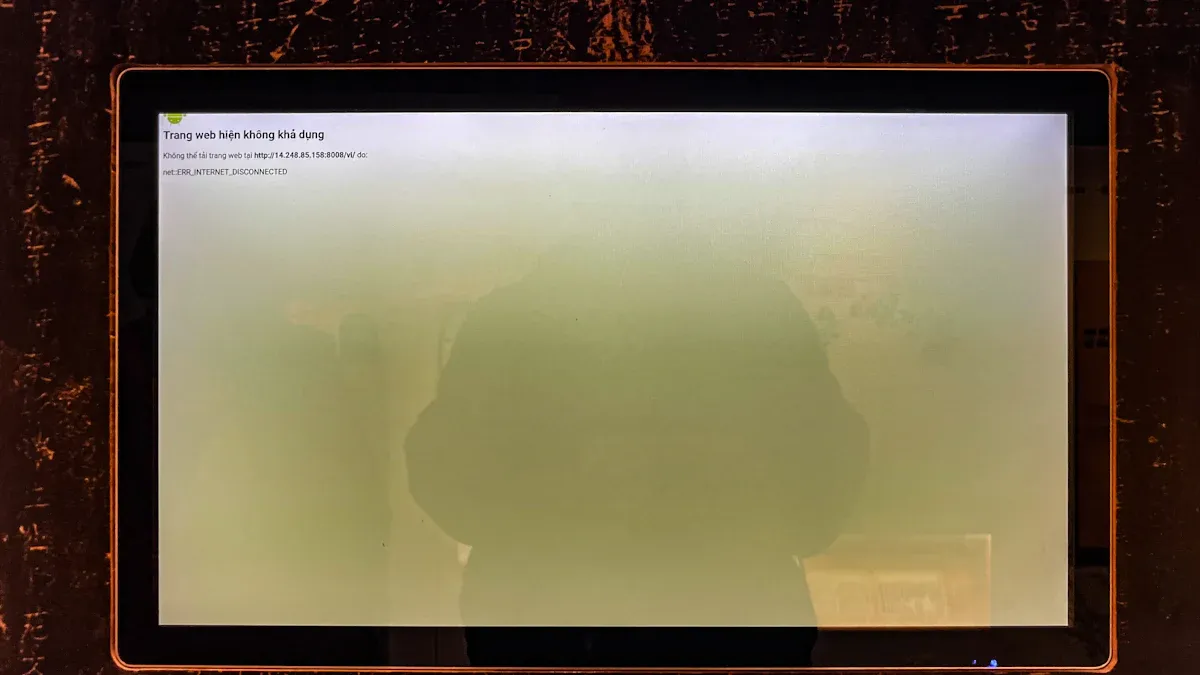

Reduced Glare

Optical bonding eliminates the air gap between the display and the cover glass. This removal decreases light reflection, which enhances both contrast and brightness. In traditional air gap displays, ambient light reflects off the internal surfaces, causing glare that obscures the image. By bonding the layers, optical bonding reduces internal reflections from about 8% to less than 1%. This significant reduction in glare improves visibility, especially in environments with strong ambient light. The display remains readable even when exposed to direct sunlight, as external light is absorbed more efficiently.

Note: Optical bonding minimizes opportunities for refraction, making screens easier to read in high-brightness settings.

Enhanced Durability

Optical bonding increases the ruggedness of displays by filling gaps and creating a solid structure. The adhesive layer spreads impact energy across the display area, which helps prevent cracks and damage from physical shocks. This added durability is crucial for devices used in industrial, automotive, and medical environments. The bonded layers resist scratches and water ingress, extending the lifespan of the display. Many optically bonded screens comply with standards such as MIL-STD-810G/H, which require resistance to shock, vibration, humidity, and sand or dust.

Alert: Enhanced durability means optically bonded displays withstand harsh conditions and frequent handling.

Better Touch Accuracy

Optical bonding improves touch accuracy by removing the air gap between the touch layer and the display panel. This direct lamination stabilizes touch inputs and ensures accurate registration of touch events. The absence of flexing or movement between layers reduces parallax errors, aligning touch points precisely with the display content. Users experience a more natural and reliable touch interaction, which is especially important for navigation systems and industrial controls. Optical bonding also minimizes noise interference from the display panel, resulting in a stable touch experience even in environments with electromagnetic interference.

• Optical bonding removes the air gap, stabilizing touch inputs.

• The elimination of flexing ensures accurate registration at the point of contact.

• Users benefit from improved touch accuracy and responsiveness.

• The reduction in interference leads to a seamless touch experience.

Protection from Contaminants

Optical bonding provides strong protection against dust, moisture, and condensation. The adhesive seals the layers together, eliminating air gaps that can harbor contaminants. This protection enhances reliability, especially in variable environments where dust and moisture pose risks. The prevention of condensation is crucial for displays used outdoors or in industrial settings. Optically bonded screens meet standards for moisture ingress and impact resistance, ensuring long-term performance.

Callout: Optically bonded displays remain reliable and clear, even in dusty, wet, or humid conditions.

Applications

Consumer Devices

Optical bonding appears in many consumer electronics. Manufacturers use this technology in smartphones, tablets, and laptops to improve screen clarity and durability. Touch screens benefit from enhanced performance and longer lifespan. Avionics displays in high-end consumer products rely on optical bonding for default design features. The process also supports industrial monitors that require improved visibility in harsh environments.

• Optical bonding enhances display performance.

• It improves visibility in extreme temperatures.

• Commonly used in touch screens and industrial monitors.

Note: Optical bonding in consumer devices ensures screens remain readable and reliable during daily use.

Industrial and Outdoor Use

Industrial and outdoor displays require robust performance. Optical bonding eliminates the air gap, which enhances light transmission and clarity. This feature proves essential in bright environments, such as outdoor kiosks and digital signage. The process minimizes glare and prevents condensation, making screens readable in direct sunlight and variable temperatures. The strong bond protects against impacts and scratches, which is vital for harsh settings.

• Improved brightness and contrast support outdoor readability.

• Displays resist moisture and dust ingress.

• Touch performance increases by minimizing parallax effects.

Tip: Outdoor digital signage with optical bonding offers superior visibility and durability compared to air-bonded screens.

Medical and Automotive Displays

Medical and automotive displays demand high reliability. Optical bonding reinforces screens against shocks, vibrations, and impacts. This feature proves essential for mobile applications and environments with constant movement. The process increases resistance to moisture, dust, and environmental factors, ensuring long-term performance. Touch sensitivity improves due to direct force transfer, achieving latencies under 10ms. Displays maintain color vibrancy and thermal efficiency.

• Sensitivity increases by 20-30% due to direct force transfer.

• The need for constant recalibration of the touch controller is eliminated.

• Regulatory standards, such as IEC 60601 and ISO 13485 for medical devices, and OCA film ratings for automotive displays, ensure safety and quality.

Alert: Optical bonding in medical and automotive displays meets strict standards for safety, performance, and environmental resistance.

Optical bonding offers several key advantages for displays:

• Improved durability against shock, vibration, and moisture

• Enhanced brightness, contrast, and optical clarity

• Elimination of air gaps, which prevents condensation and fogging

• Better touchscreen accuracy and compatibility with overlays

Manufacturers continue to adopt optical bonding as demand for high-quality, reliable displays grows in consumer electronics and automotive sectors.

FAQ

What is optical bonding?

Optical bonding is a process that attaches a protective glass or touchscreen directly to a display panel using a transparent adhesive. This method eliminates the air gap, improving clarity and durability.

What materials do manufacturers use for optical bonding?

Manufacturers use optically clear adhesives such as silicone, epoxy, urethane, or acrylic. These materials provide strong bonds, resist environmental stress, and maintain high transparency.

What benefits does optical bonding offer?

Optical bonding increases display readability, reduces glare, enhances durability, and protects against dust and moisture. It also improves touch accuracy by stabilizing the layers.

What devices commonly feature optical bonding?

Smartphones, tablets, industrial monitors, medical equipment, and automotive displays often use optical bonding. These devices require clear, durable screens for reliable performance.

What challenges exist with optical bonding?

Repairing optically bonded displays can be difficult and costly. Specialized equipment and skilled technicians are necessary, making replacement more practical than repair in many cases.
